101173GT Scissor Lift Joystick Single Axis For S-60 S-65 S-80 S-85 SX-135 XC Aerial Lift

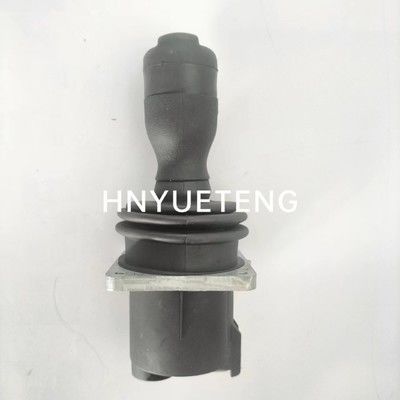

Large Image : 101173GT Scissor Lift Joystick Single Axis For S-60 S-65 S-80 S-85 SX-135 XC Aerial Lift

Product Details:

Place of Origin:	CN
Brand Name:	GENIE
Certification:	CE ,ISO
Model Number:	101173 101173GT

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	45-300USD
Packaging Details:	Carton Box
Delivery Time:	Within 7 days upon order confirmed
Payment Terms:	Western Union, T/T, L/C, Money Gram, D/P, D/A
Supply Ability:	1000 sets by month

Contact Now Chat Now

Detailed Product Description

Brand:

Genie

Model No:

101173 101173GT

Place Of Origin:

China

Color:

Black

Highlight:

101173GT Scissor Lift Joystick

101173GT genie lift joystick

Single Axis Scissor Lift Joystick

101173GT Scissor Lift Joystick Single Axis For S-60 S-65 S-80 S-85 SX-135 XC Aerial Lift

High Quality Genie Single Axis Joystick 101173 101173GT Genie Boom lift S65 S60 S85 S125 S100 S105 Z45 Z135

Condition:	New 100%
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works, Other
Machinery Test Report:	Not Available
Marketing Type:	Ordinary Product
Place of Origin:	Hunan, China
Brand Name:	No Brand
Warranty:	3 months
Product name:	Joystick Controller
Part number:	101173 101173GT
Quality:	High-Quality
MOQ:	1PC
Packing:	Carton Box
Application:	Genie Boom Lift Models S-60 S-65 S-80 S-85 SX-135 XC

Product Overview: Aerial Lift Joystick Controller (Part #: 101173 / 101173GT)

This product is a genuine Genie Joystick Controller, a critical component for the platform control system of several Genie boom lift models. It serves as the primary interface for the operator to precisely control the lift's movements from the platform.

The part numbers 101173 and 101173GT typically refer to the same core joystick unit, with the "GT" suffix often indicating it is sold as a complete kit or includes specific mounting hardware (grommets, bolts, etc.). Always verify compatibility based on your specific serial number.

Primary Function:

This proportional joystick translates the operator's physical input into precise, variable-speed electrical signals to control the lift's boom functions and drive functions (on some models).

Key Features & Components

Proportional Control: Provides smooth, variable-speed operation. The further the joystick is moved, the faster the corresponding function moves, allowing for delicate positioning.
Multi-Function Design: A single joystick typically controls multiple axes of movement:
- Boom Elevate/Lower: Forward and backward movement of the stick.
- Boom Extend/Retract: Left and right movement of the stick.
- Swing/Rotate: Often controlled by a twist grip on the handle.
Function Selector Switch (Optional): Many Genie joysticks incorporate a "dual-function" button or switch that allows the same joystick movements to control alternate functions, such as Drive & Steer, when activated. This creates a compact, intuitive control console.
Durability: Built to withstand harsh industrial environments, including resistance to weather, dust, and impact.
Ergonomic Handle: Designed for operator comfort and reduced fatigue during extended use.

Compatibility & Application

This joystick is compatible with a wide range of popular Genie telescopic and articulating boom lifts.

Primary Model Compatibility:

Genie S™-60 (Trailer-Mounted Boom Lift)
Genie S™-65 (Trailer-Mounted Articulating Boom Lift)
Genie S™-80 (Telescopic Boom Lift)
Genie S™-85 (Articulating Boom Lift)

Additional Compatible Models (Always Verify):

Genie SX™-135 (Articulating Boom Lift)
Genie XC™ Series (e.g., Rough Terrain Boom Lifts)

Machine Type: Trailer-Mounted and Self-Propelled Boom Lifts (Aerial Work Platforms).

Purpose & Importance

This joystick is essential for:

Precise Positioning: Enables operators to accurately place the platform for work tasks.
Safe Operation: Proportional control allows for smooth, predictable movements, enhancing safety for the operator and those on the ground.
Machine Functionality: A failure in this component will directly impact the ability to control the lift's primary functions.

Common Reasons for Replacement

Wear and Tear: Internal potentiometers or electronics failing due to extensive use.
Physical Damage: Damage from impact, crushing, or exposure to the elements.
Control Malfunctions: Issues such as erratic movement, failure to center, or unresponsive functions.
Electrical Faults: Damage to the connector or internal wiring.

Important Note: Replacement of this critical control component should always be performed by a qualified and authorized service technician. Proper installation and calibration are essential for safe machine operation.
