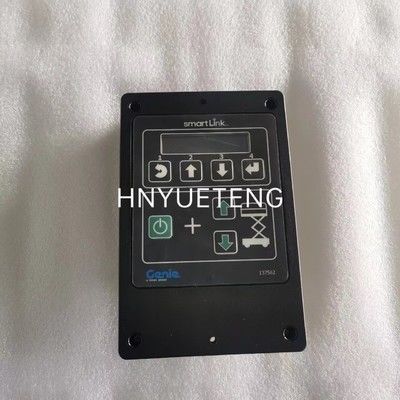

137692 Black Genie Electronic Control Unit Solid With Integrated Safety System

Large Image : 137692 Black Genie Electronic Control Unit Solid With Integrated Safety System

Product Details:

Place of Origin:	CN
Brand Name:	GN-137692
Certification:	CE ,ISO
Model Number:	100839

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	70-700USD
Packaging Details:	Carton Box
Delivery Time:	Within 7 days upon order confirmed
Payment Terms:	Western Union, T/T, L/C, Money Gram, D/P, D/A
Supply Ability:	1000 sets by month

Contact Now Chat Now

Detailed Product Description

Color:	Black	Material:	ABS Plastic ,Metal Heat Sink
Length (m):	0.20	Width (m):	0.13
Height (m):	0.06	Weight (kg):	0.44
Highlight:	137692 Genie ECU aerial lift , 137692 Genie Electronic Control Unit , Solid Genie Electronic Control Unit

137692 Black Genie Electronic Control Unit Solid With Integrated Safety System

Genie Lift Parts ECU Electronic Control Unit 137692 GENIE GCON GR GRC GS

The Genie ECU (Electronic Control Unit) is a critical component in various Genie equipment, such as lifts and booms, responsible for managing and controlling the electrical functions of the machine. The part number 137692 refers to a specific model of the Genie GCON ECU.

Condition:	New 100%
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works, Other
Place of Origin:	Hunan, China
Brand Name:	No Brand
Warranty:	3 months
Product name:	ECU
Part number:	109503 109503GT
Quality:	High-Quality
MOQ:	1PCS
Packing:	Carton Box
Application:	Used for GS1930, GS1932, GS2046, GS2646, GS3246, GS4047...

The Genie Electronic Control Unit (ECU) Part #137692 is a critical, high-level computational module that acts as the central nervous system for several generations of Genie aerial work platforms. It is a proprietary computer that manages the core operational functions and safety interlocks of the machine.

Key Features & Specifications

Genuine OEM Part: Manufactured by Genie/Terex to exact specifications, ensuring flawless communication with other machine components.
Part Number: 137692 (This is the master part number; supersessions or variations may exist).
Function: A solid-state microprocessor-based controller.
Compatibility: Designed for use across a wide range of Genie boom lifts and scissor lifts, notably those from the GCON, GR, GRC, and GS model series (e.g., Genie Z-30/34, Z-40/45, GS-32/39, GS-46/54 scissor lifts).
Primary Role: To process input signals from sensors and operator controls and output commands to hydraulic valves, drive motors, and other systems.

Core Functions & Applications

Machine Operation Management:

Control Interpretation: Processes signals from both the platform controls and the ground controls.
Drive System Control: Manages the drive functions, including speed regulation, acceleration, and braking.
Lift & Steer Functions: Controls the hydraulic valves that actuate the lift, lower, and extension functions, as well as steering.

Integrated Safety System Enforcement (Most Critical Function):

The ECU is programmed with Genie's proprietary safety logic. It constantly monitors the machine's status and will disable certain functions if conditions are unsafe. This includes:

Interlock Monitoring: Checks the status of platform gate switches, harness lanyards, and tilt sensors. The machine will not lift if these interlocks are not engaged.
Load Sensing: On models with load sensing, it monitors pressure sensors to determine if the platform is overloaded.
Slope Operation: Restricts drive functions or prevents lifting if the machine is on an excessive slope (as detected by the tilt sensor).
Error Diagnostics: Detects faults within the system (e.g., short circuits, sensor failures, communication errors) and will often shut down or limit machine operation, displaying a fault code.

Diagnostics and Troubleshooting:

Fault Code Generation: When a problem occurs, the ECU stores a Diagnostic Trouble Code (DTC). Technicians can retrieve these codes to quickly pinpoint issues, significantly reducing diagnostic time.
Data Logging: Some ECUs record operational data, which can be vital for troubleshooting intermittent problems.

Why is this Part Critical?

Central Processing Hub: The machine cannot function without a properly operating ECU. It is the essential link between operator input and machine action.
Safety Assurance: It is not just a controller but a safety controller. It is programmed to prevent unsafe operation, protecting both the operator and the machine.
Downtime Reduction: A significant number of machine malfunctions (e.g., no drive, no lift, error codes) can be traced back to a faulty ECU. Replacing it is often the definitive repair.
Compatibility: Using the genuine Genie part (#137692) is crucial. Aftermarket or incorrect ECUs may not be programmed with the correct safety logic and operational parameters, which can be dangerous and void machine warranties.

Symptoms of a Failing ECU

You may need to replace this ECU if the machine exhibits:

Intermittent or complete loss of drive or lift functions.
The machine "dies" or shuts down unexpectedly during operation.
Persistent and unexplained error codes on the display.
No response from controls even though power is available.
Failure to pass self-diagnostic tests during startup.

Who Needs This Part?

AWP Service Technicians: The most common users, for repairing non-functioning machines.
Equipment Rental Companies: To maintain fleet availability and safety compliance.
Large Construction Companies: For in-house maintenance and repair of their owned equipment.
Electrical/Hydraulic Specialists: Who diagnose and confirm the ECU as the root cause of a machine failure.
